Yes, an insect screen can often be installed on a Singapore window that already has grilles. However, the answer depends on much more than the width and height of the window.
The available frame space, grille position, window opening direction, handles and the way the screen needs to operate all affect the final solution. Two windows with similar dimensions may require different installation arrangements, and some windows may not have enough clearance for the preferred system.
BlindXpert can use clear window photographs, the window type, the grille position and approximate measurements for an initial assessment. The final product, installation position and operating method must be confirmed against the frame space, opening direction, handle position, grille structure and on-site measurements. Not every window with grilles is suitable for the same insect-screen solution.
Do the Existing Window Grilles Need to Be Removed?
Not necessarily. A grille does not automatically prevent an insect screen from being installed, and the completed BlindXpert installation shown above retains the existing grille.
What matters is whether there is a suitable mounting plane and enough clearance for the screen, the existing windows and their handles to operate without colliding. The grille may sit close to the glass, near the room-facing edge of the recess or somewhere between those points. Its position changes how much usable space remains.
For that reason, BlindXpert should not promise that a grille can stay—or that it must be removed—based only on a window measurement. The whole window arrangement must be reviewed first.
Can the Screen Go Inside or Outside the Window Grille?
There is no universal inside-or-outside rule. The suitable position depends on the order of the existing components and how each one moves.
The assessment should check:
- where the casement or sliding window travels;
- how far the handles project into the available space;
- whether the grille has fixed or moving sections;
- whether there is a continuous and usable frame surface;
- whether the screen can be operated without reaching through an unsafe or impractical gap;
- whether access remains available for cleaning, maintenance and any required opening.
The final position should therefore be treated as a site-specific installation decision rather than a standard answer for every HDB, BTO or condominium window.
What the Real Installation Photos Show

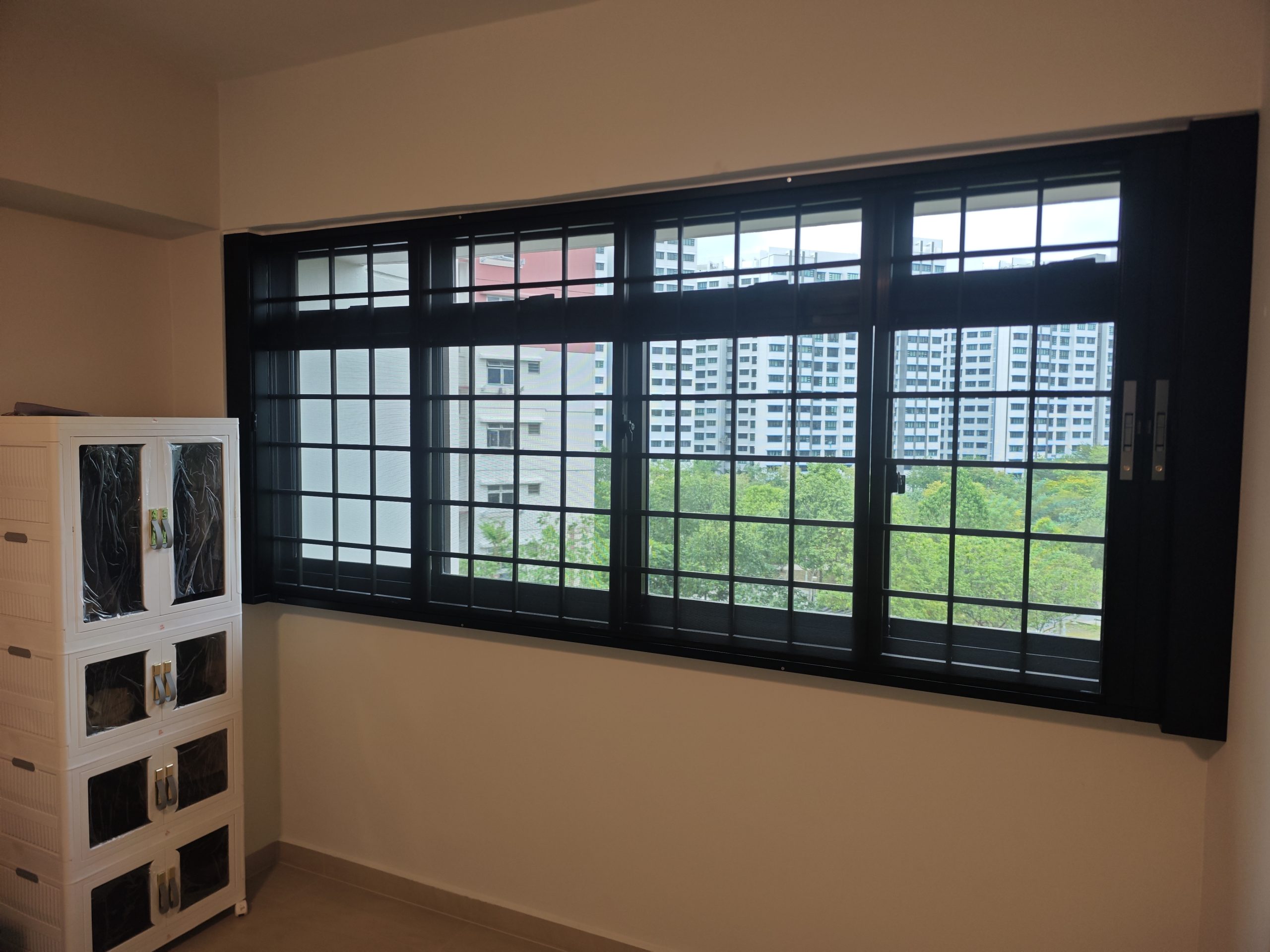

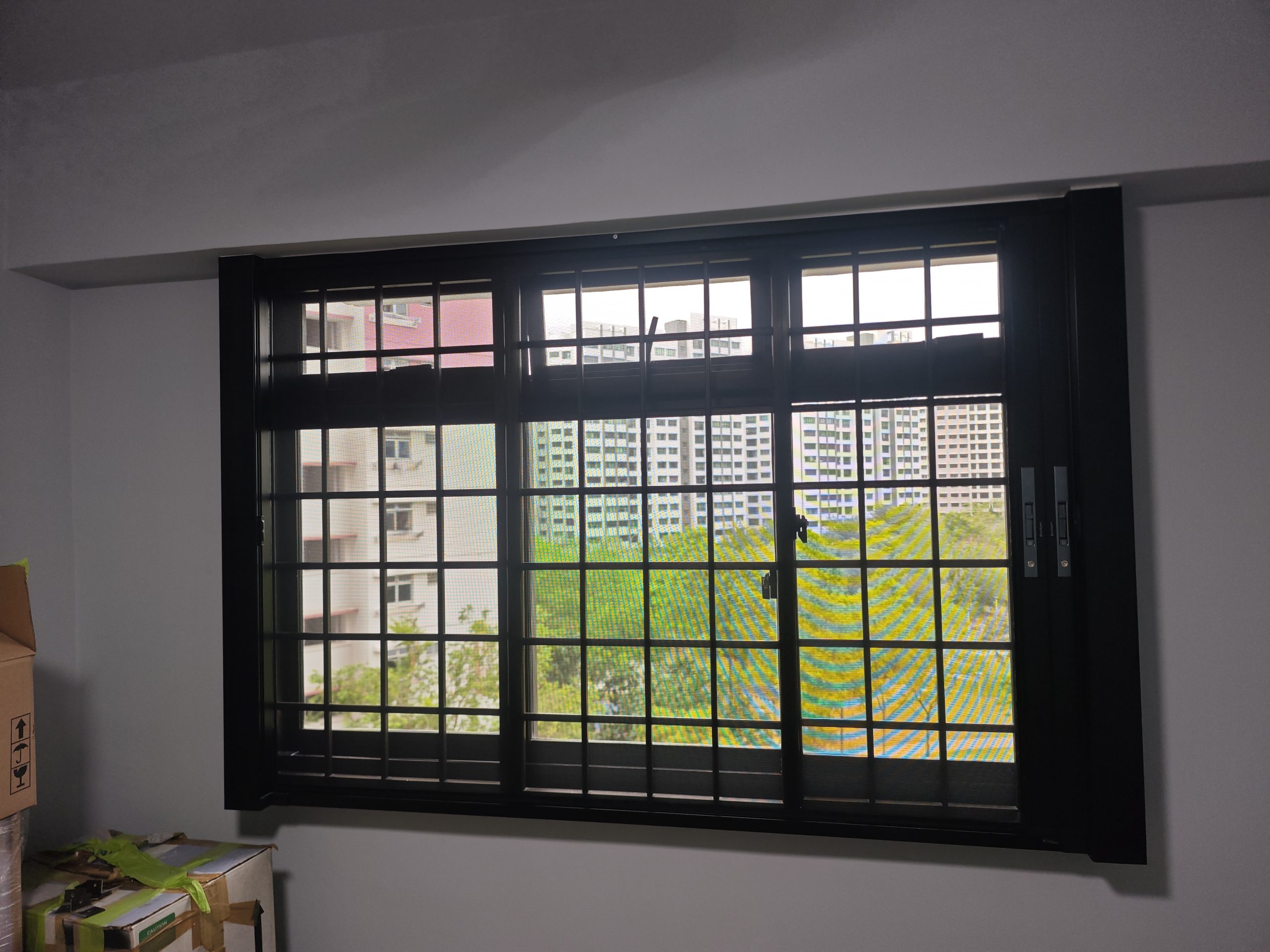

The following completed installation provides a useful real-world observation. The screen system has its own perimeter frame, while the original grid-style grille remains clearly visible across the window. The window handles are also still visible.
This photograph supports one important point: existing grilles and an insect-screen system can coexist when the actual window arrangement provides suitable space.
It does not mean the same frame position will work for every home. A different grille depth, handle design, curtain track or opening direction can change the available installation area.
Why Window Type and Opening Direction Matter
Casement and top-hung windows
Casement and top-hung panels move inward or outward around hinges. The installer needs to check the path of the sash and the position of each handle. Even if the screen fits within the recess, it should not prevent the user from reaching or operating the original window.
Sliding windows
Sliding windows move within their existing tracks, but the grille, locks and overlapping panels can still limit the available mounting surface. A photograph taken straight towards the full window is helpful, but close-ups of the track and handles may also be required.
Service-yard and kitchen windows
These areas may have nearby counters, pipes, racks, laundry equipment or limited standing space. The opening may be physically large enough, while the practical space for installation and later maintenance is restricted.
Bedroom and living-room windows
Curtain tracks, blinds, built-in furniture and window ledges can affect access to the frame. A wide window may also contain several different opening panels, so the entire elevation should be assessed instead of measuring only one section.
For an overview of how different window types affect screen selection, read Which Insect Screen Works Best for Singapore Windows?.
Will the Window Handle Affect the Insect Screen?
It can. A projecting handle may occupy the same space needed by a screen panel, handle, frame or moving layer. The relevant measurement is not only the distance across the opening; the depth between the window, grille and room-facing edge is equally important.
Useful photographs should show:
- the full window from directly in front;
- the window with at least one panel open;
- the handle from the side;
- the gap between the handle and the grille;
- the top, bottom and side edges of the window recess.
These images help BlindXpert identify obvious conflicts before a site visit. Final feasibility still depends on accurate measurement and confirmation of how the system will be operated.
Single-Layer or 2-in-1?
The grille itself does not determine whether a single-layer or dual-layer configuration is appropriate. The decision starts with what the room needs and whether the window has enough usable installation space.

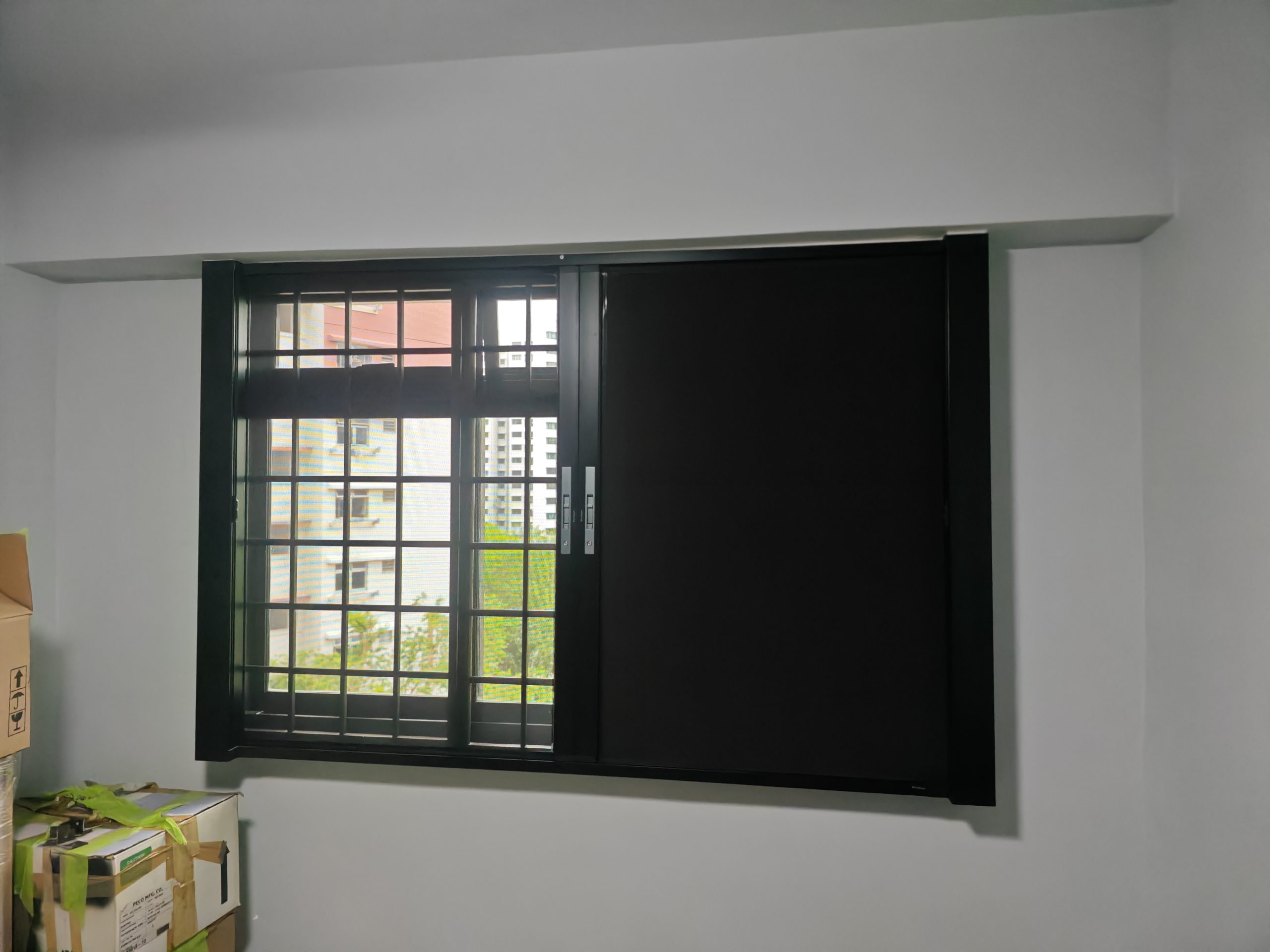

The BX MultiPro Screen product page lists single-layer insect-screen and roller-blind configurations as well as dual-layer combinations. Available choices include an insect screen or pet-mesh layer, together with dimout or blackout blind options in suitable configurations.
In a room mainly used for ventilation, a screen-focused configuration may be the priority. A bedroom may also need privacy or stronger light control. A pet-owning household may want the team to assess a pet-mesh option. These are selection considerations—not conclusions that can be drawn from a photograph alone.
For a closer explanation of the two operating layers, see 2-in-1 Insect Screen and Blind in Singapore: How the Dual-Layer System Works.
Why a Window Measurement Alone Is Not Enough
A width-and-height measurement does not show several details that can decide whether an installation is practical:
- the depth of the recess;
- the exact grille position;
- protruding handles and locks;
- the travel path of open window panels;
- uneven or interrupted frame surfaces;
- curtains, tracks and built-in fittings near the opening;
- the space available for cleaning and future servicing.

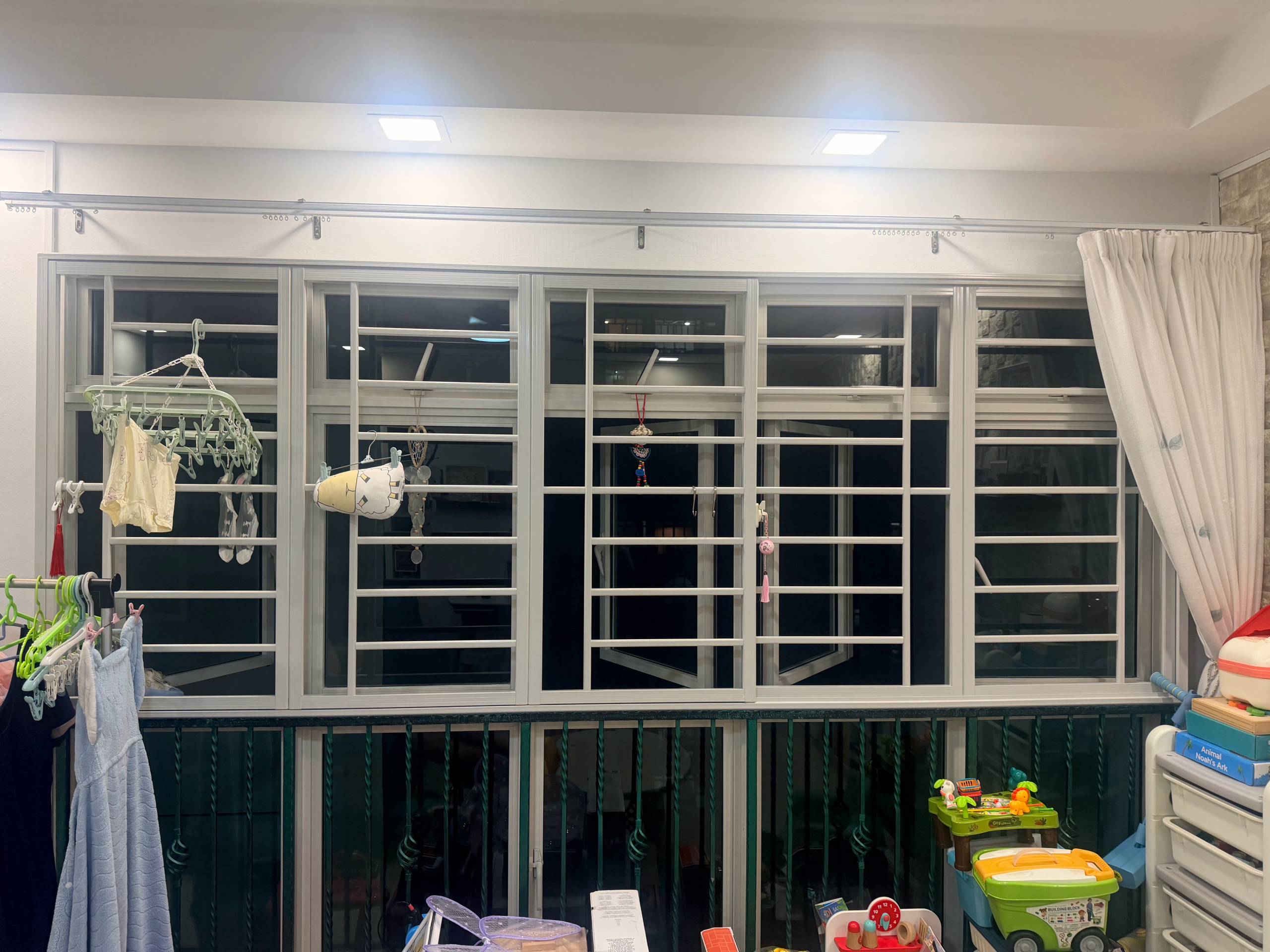

The pre-installation photograph above is useful precisely because it shows the entire situation. It should not be presented as a finished BlindXpert installation. Instead, it demonstrates why a clear, wide photograph can reveal information that a simple measurement leaves out.
What Photos Should You Send for an Initial Assessment?
For a useful first review, send:
- one wide photograph showing the whole window and surrounding wall;
- one photograph with the window open;
- close-ups of the handles, locks and grille connections;
- side-angle photographs showing the available depth;
- photographs of curtain tracks, cabinets, pipes or other nearby obstacles;
- approximate width and height measurements.
If the opening has several sections, photograph all of them. Do not assume that one panel represents the whole window.
Can the Window Still Be Opened After Installation?
Maintaining practical access to the original window is an important part of the assessment. Whether the window can open normally depends on the relationship between the new system, window panels, grille and handles.
The photographs selected for this article show successful coexistence in specific completed installations, but they do not establish a universal clearance rule. BlindXpert should confirm the proposed operating sequence for the actual window before installation.
Cleaning, Maintenance and Access
Before choosing a configuration, ask how the selected screen is operated and how the window and grille can be reached for cleaning or maintenance. The correct method may differ between system configurations.
Do not force a screen, window panel or handle when another component is in its path. Follow the operating and care instructions provided for the installed configuration. If access to a particular grille section, lock or window component is important, point it out during measurement rather than after installation.
When Is an On-Site Measurement Necessary?
Photographs are useful for an initial assessment, especially when they clearly show the window open and closed. An on-site measurement is particularly important when:
- the frame depth is difficult to see;
- the grille sits very close to the handles;
- several window panels open in different directions;
- the frame surface is narrow or interrupted;
- curtains, cabinetry or service-yard fittings limit access;
- the preferred screen configuration has more than one operating layer;
- the photographs do not show how the full opening works.
The measurement visit is where the proposed product, installation position and operating method can be checked against the actual window.
Frequently Asked Questions
Can insect screens be installed without removing window grilles?
Sometimes, yes. The real BlindXpert installations in this article show grilles retained with a BX MultiPro system. Suitability still depends on the individual frame, grille position, handles and operating clearance.
Can I confirm installation using only my window dimensions?
No. Approximate dimensions are helpful for an initial discussion, but they do not show frame depth, handle projection, grille construction or the window’s opening path.
Are HDB casement windows with grilles suitable for insect screens?
Some may be suitable, but the housing label alone is not enough to confirm a solution. BlindXpert needs to review the actual casement direction, handles, grille and available frame space.
Can a screen be fitted to sliding windows with grilles?
It may be possible when a suitable mounting surface and operating clearance are available. The sliding tracks, locks, overlapping panels and grille depth should be checked first.
Will the screen block the original window handle?
It should be assessed before installation. Handle location and projection are common reasons why two similar-looking windows may require different arrangements.
Can I remove the screen for cleaning?
Cleaning and removal methods depend on the selected configuration. Ask BlindXpert to demonstrate the correct operation and maintenance method for the installed system.
Can BlindXpert assess my window from WhatsApp photos?
Clear photographs and approximate measurements can support an initial assessment. Final suitability, product choice and installation position may still require an on-site measurement.
Get a Window Assessment from BlindXpert
Not sure whether your existing grilles leave enough space for an insect screen?
Upload clear window photos to BlindXpert on WhatsApp. Include a full-window view, an open-window photograph, close-ups of the handles and grille, and approximate measurements. The team can use them for an initial assessment and advise whether an on-site measurement is needed.
You can also review the BX MultiPro Screen configurations or contact BlindXpert for product and measurement enquiries.
